Veterinary Radiofrequency Tumor Ablation
RFA-100 Veterinary Radiofrequency Tumor Ablation System
A veterinary radiofrequency ablation system combining radiofrequency energy with temperature and tissue-impedance monitoring for tumor-ablation workflows.
Key Facts
RFA-100 at a glance.
Radiofrequency output
Temperature and tissue-impedance monitoring
Intelligent and Manual operating modes
Product Value
Radiofrequency energy with temperature and tissue-impedance monitoring.

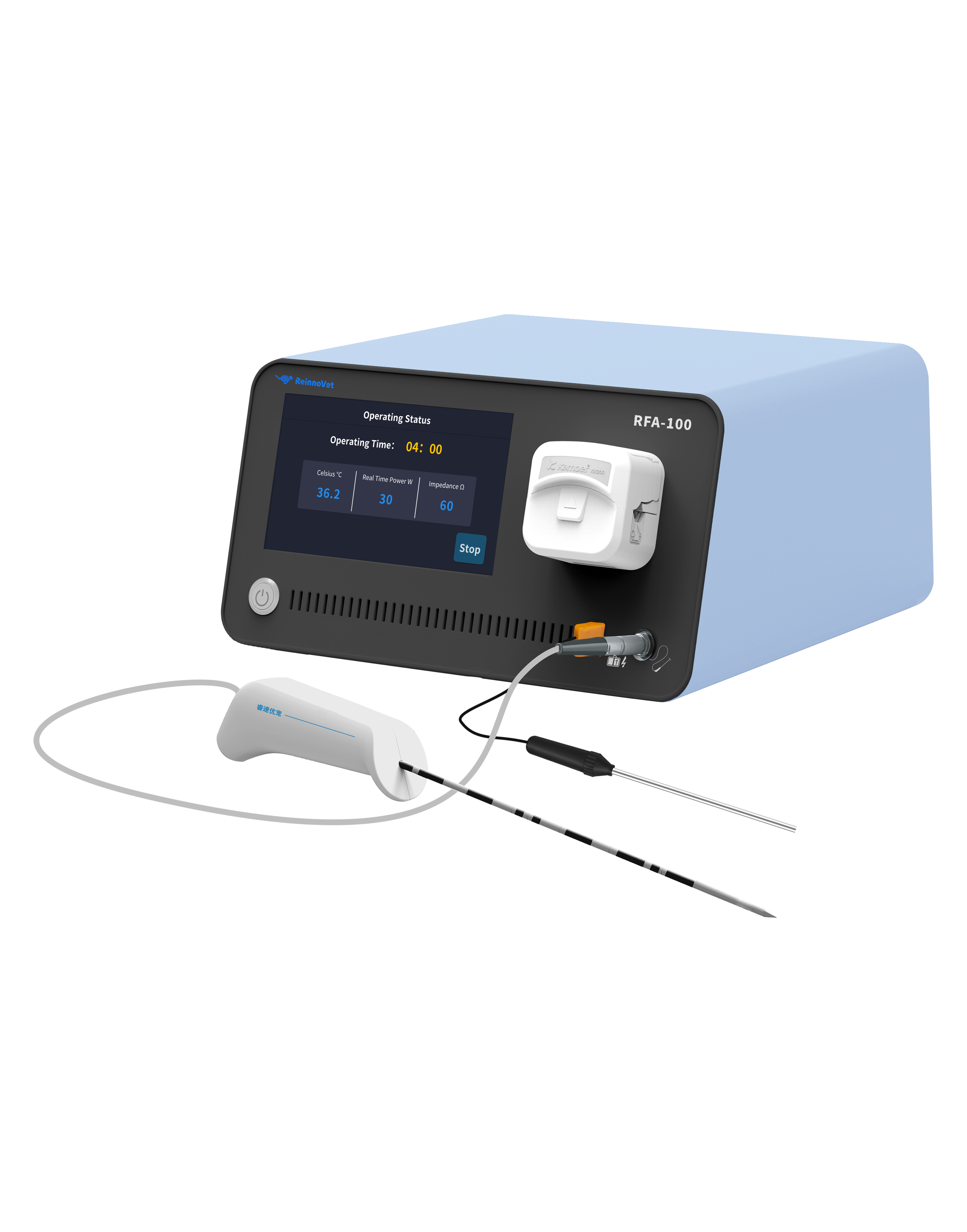

RFA-100 combines a radiofrequency main unit, temperature probe and RF ablation needle family for veterinary tumor-ablation workflows.
Monitoring and Feedback
Operating feedback during energy delivery.
Temperature-probe feedback and impedance monitoring provide information about tissue response during energy delivery.
Veterinary radiofrequency tumor ablationDual-Variable Feedback
Temperature and impedance provide complementary views of tissue response during ablation.
Temperature Feedback
The temperature probe provides real-time input during radiofrequency energy delivery.
Tissue-Response Feedback
Tissue-impedance inputs provide monitoring information during radiofrequency energy delivery.
Veterinary-Focused Workflow
Developed for veterinary radiofrequency tumor-ablation workflows.
Core Technology
Two feedback signals for operating monitoring.
Temperature and tissue-impedance inputs provide monitoring information during radiofrequency energy delivery.
Temperature Feedback
Temperature-probe monitoring
The temperature probe provides monitoring input during radiofrequency energy delivery.
Bioimpedance Feedback
Tissue-impedance monitoring
Tissue-impedance inputs provide monitoring information during radiofrequency energy delivery.
Intelligent Mode Monitoring
From monitoring to operating review.
View
Selected mode and displayed operating parameters
Monitor
Temperature and impedance
Settings
Operator-selected settings in applicable modes
Review
Displayed operating information and applicable product instructions
Operating Modes
Automatic and Manual operating modes.
Manual and automatic modes with temperature and impedance monitoring. Temperature references are fixed monitoring values. Operation should follow the applicable Instructions for Use and professional training.
Automatic Mode
Temperature and impedance monitoring.
Manual and automatic modes with temperature and impedance monitoring. Standard Mode: 42°C. Enhanced Mode: 45°C. These fixed ablation monitoring reference values cannot be changed by the user.
Manual Mode
Temperature and impedance monitoring.
Manual and automatic modes with temperature and impedance monitoring. Standard Mode: 42°C. Enhanced Mode: 45°C. These fixed ablation monitoring reference values cannot be changed by the user.
Ablation Workflow
A clear workflow from preparation to treatment review.
Review the compatible RF ablation needle, monitoring inputs and operating information throughout the procedure. Detailed use should always follow the applicable Instructions for Use and professional training.
- 01
Select the RF ablation needle
Select the appropriate RF ablation needle specification according to the target lesion and clinical assessment.
- 02
Position the RF ablation needle
Needle placement should follow the applicable Instructions for Use and professional training.
- 03
Monitor the ablation process
Monitor temperature, power and impedance in real time during energy delivery.
- 04
Review treatment status
Review the displayed operating information and treatment status throughout the procedure.

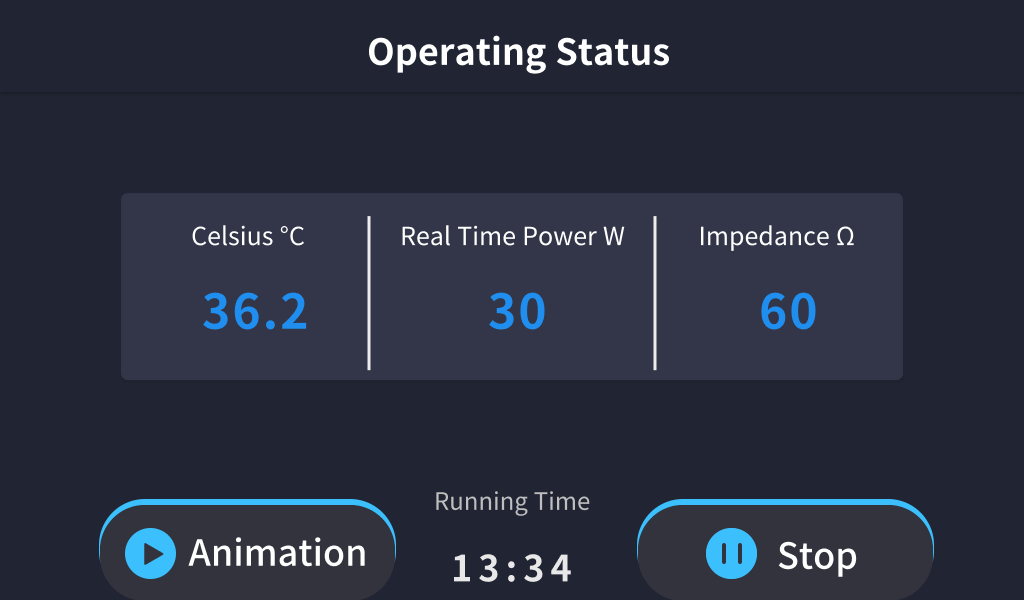

Operating Interface
Real-time parameters organized for focused clinical control.
The RFA-100 interface brings temperature, impedance, time, power, mode status and ablation status into one clearly structured operating view.
Clear Operating Logic
See the treatment state at a glance.
Temperature, impedance, power and elapsed time remain visible during treatment.
Intelligent and Manual operating states are clearly distinguished.
The interface displays operating status during energy delivery.
Configuration & Specifications
Purpose-built system components and technical parameters.
Review the core system composition, needle specifications and principal equipment data in one place.

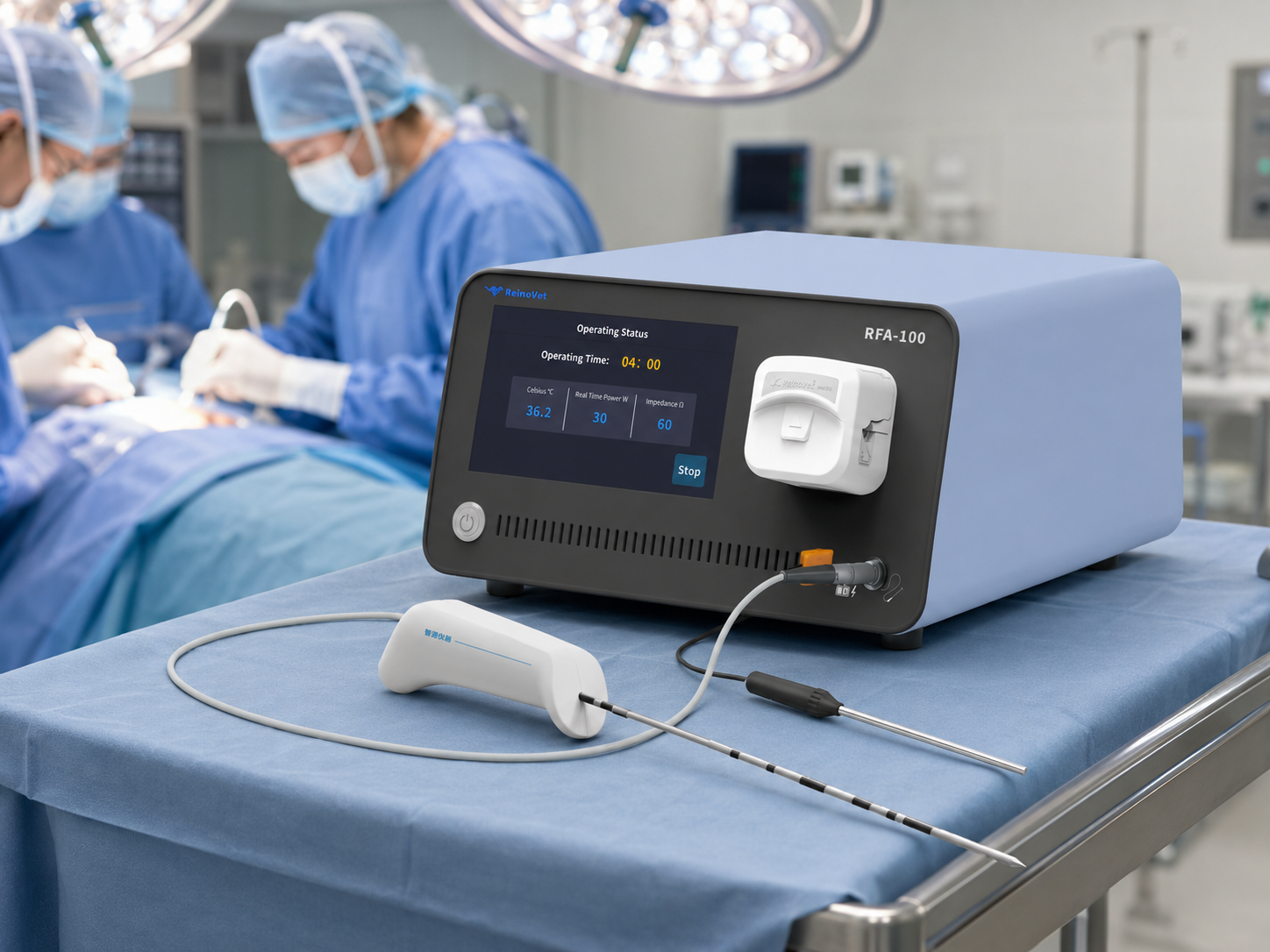

System Components
A focused system for veterinary tumor ablation.
Radiofrequency energy console
Real-time temperature monitoring input
Recommended tumor diameters: 2 cm, 3 cm and 4 cm, depending on clinical assessment.
System component
RFA-100 Technical Specifications
- RF Frequency
- 450 kHz
- Operating modes
- Manual and automatic modes with temperature and impedance monitoring
- Standard Mode Temperature Reference
- 42°C (fixed monitoring reference)
- Enhanced Mode Temperature Reference
- 45°C (fixed monitoring reference)
- Power Input
- Configurable to local requirements
- Main Unit Weight
- 6.5 kg
- Main Unit Dimensions
- 320 × 360 × 170 mm
- Electrical Protection
- Class I / Type CF Applied Part
RF Ablation Accessories
RF ablation needles and temperature monitoring.
The RFA-100 system supports multiple RF ablation needle specifications together with a dedicated temperature probe for real-time temperature monitoring.

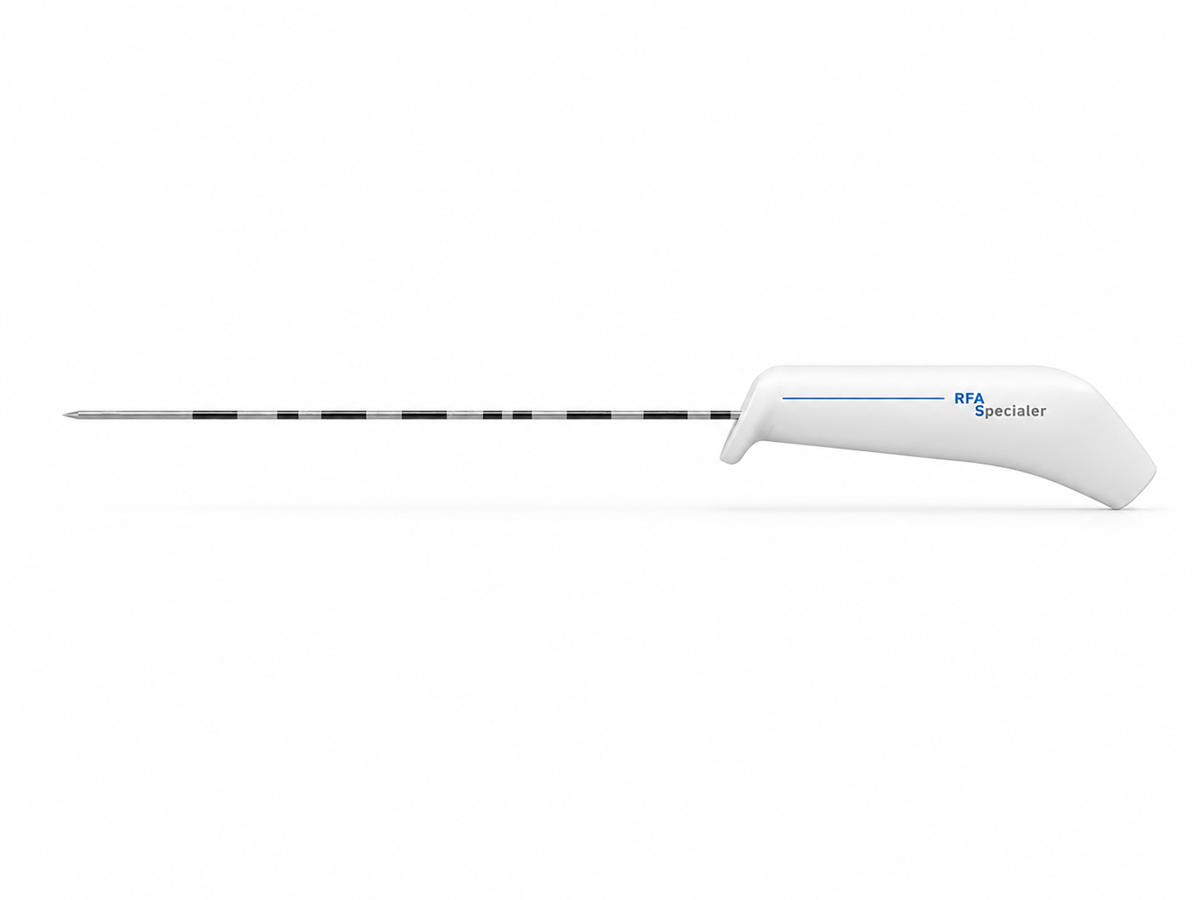

RF Ablation Needles
Multiple RF ablation needle specifications.
Select the appropriate RF ablation needle specification according to the target lesion and clinical assessment.
3 specifications
- 01Recommended tumor diameter2 cm
- 02Recommended tumor diameter3 cm
- 03Recommended tumor diameter4 cm

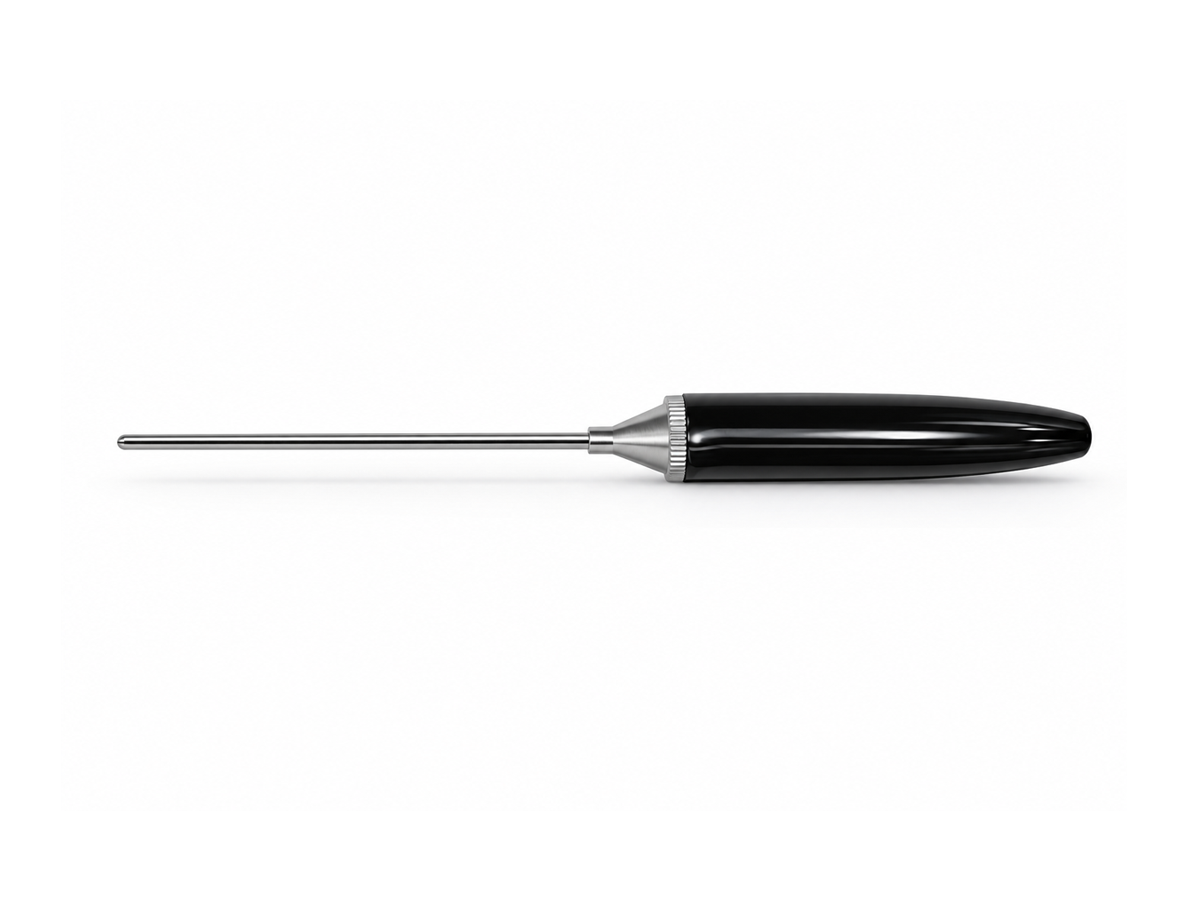

Temperature Monitoring
Temperature Probe
Provides real-time temperature monitoring input during RF ablation.
Evidence
Pre-clinical & Clinical Evidence
Acute porcine study
A simulated tumor in porcine liver, measuring 2 cm, was ablated in 7 minutes in intelligent mode. Ablation zone 20.74 × 20.08 mm, near-spherical. No charring, smoke or needle adhesion; histology confirmed necrosis across the target zone.
Case by Dr. Wang, a veterinary hospital in Tianjin, China
11-year-old male dog with cardiac and pulmonary disease; four connected right maxillary oral tumors (2.7 / 2.4 / 1.8 / 1.5 cm). 2.2 mm ablation needle, intelligent mode with temperature-probe margin control; 8 / 8 / 5 / 4 min. No charring or adhesion; tumor resolved by Day 14; no recurrence observed at 6-month follow-up in this case. Individual results may vary.
APPLICATIONS
Minimally invasive tumor-ablation support for dogs and cats.
RFA-100 is designed for veterinary radiofrequency ablation of clinically assessed tumors, with needle selection based on target size and treatment planning.
Product Documentation
Download the Product Brochure. Request Instructions for Use.
The English global RFA-100 Product Brochure is available for direct download. Instructions for Use are provided on request according to the applicable market, language and document version.
Product Brochure · PDF
RFA-100 Product Brochure
RFA-100 · English · Global
ReinnoVet-RFA-100-Product-Brochure-EN-Global.pdf
0.64 MB
RFA-100 Product Guidance
Plan a focused veterinary tumor-ablation workflow.
Contact ReinnoVet to confirm product configuration, compatible needle specifications, market availability, Product Brochure and Instructions for Use.
CE marked, certificate available on request.
