Key Facts
EP-200 at a glance.
- Cut / coag output
- 200 W
- Up to 200 W peak output
- Monopolar ports
- 2
- Supports two connected instruments
- Energy workflows
- 3
- Monopolar · Bipolar · Vessel sealing
- Vessel sealing
- ≤ 7 mm
- Supports applicable vessel-sealing workflows
Veterinary-focused design
Engineered for complex and variable veterinary tissues.
Veterinary patients vary in species, body size, tissue thickness and impedance. EP-200 supports coordinated energy workflows across these changing conditions.
Veterinary variability
Different patients. Different tissues.
One platform supporting varied veterinary surgical conditions.
- Species & anatomy
- Diverse structures
- Patient size
- Changing tissue thickness
- Tissue condition
- Variable impedance
Variable tissue conditions
Responsive across changing impedance
Tissue-impedance feedback supports energy delivery in applicable operating modes.
Veterinary workflows
Expanded instrument connectivity
Two monopolar ports support connected instruments and product-specific settings.
Energy delivery
Tissue sensing. Energy adjustment.
Tissue sensing and energy adjustment support cutting, coagulation and vessel-sealing workflows.
Energy Workflows
One generator. Three electrosurgical workflows.
A coordinated energy platform for veterinary electrosurgical workflows with compatible instruments.
Monopolar Cutting & Coagulation
Supports compatible monopolar pencils and electrodes, with two monopolar ports for instrument connection.
Bipolar Coagulation
Supports bipolar coagulation with compatible bipolar forceps and connecting accessories.
Vessel Sealing
Supports compatible vessel-sealing instruments for applicable vessels and tissue bundles up to 7 mm.
Core Technology
Intelligent dual-mode energy control.
EP-200 combines manually selected power settings with adaptive intelligent control in applicable operating modes.
Dual-mode output
Two operating logics in one platform
Operator-selected approach
Manual Power Setting
The operator selects power settings according to the applicable product instructions and operating requirements.
Impedance-feedback approach
Adaptive Intelligent Control
The system uses tissue-impedance feedback to adjust energy delivery in applicable intelligent modes.
Impedance Feedback
Detection and adjustment in applicable modes.
- Tissue-status detection
- 450,000×/s
- Energy adjustment
- 100×/s
Detect tissue status
Applicable intelligent modes use tissue-status detection during energy delivery.
Read impedance feedback
Tissue impedance provides feedback during applicable operating modes.
Adjust energy delivery
The system adjusts energy delivery according to the applicable mode.
Continue operator control
Settings and operation follow the applicable product instructions.

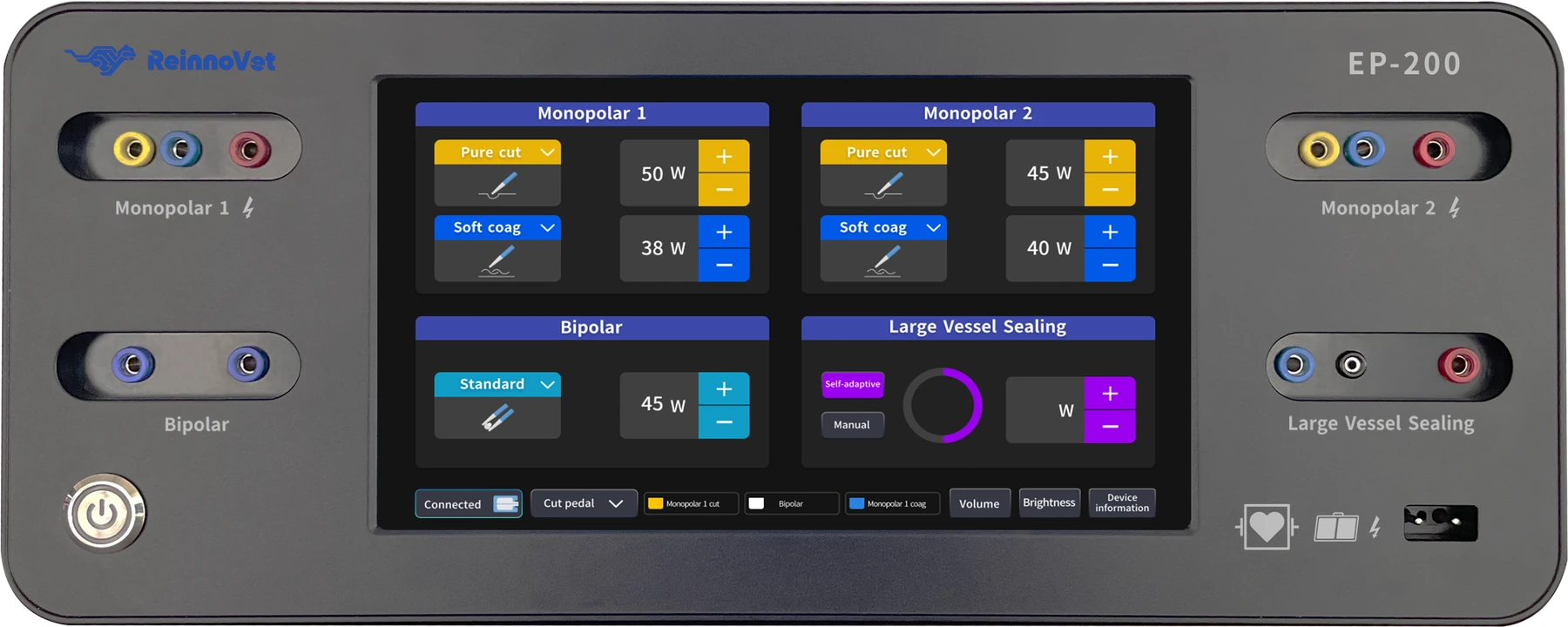

Operating Interface
All energy controls in one intuitive interface.
The EP-200 integrates monopolar, bipolar and vessel-sealing controls into one organized touchscreen interface, with two monopolar ports for instrument connection.
Intuitive operating logic
Clear recognition. Focused control.
At-a-Glance Energy Control
Independent control areas for monopolar, bipolar and vessel-sealing workflows.
Direct Port-to-Screen Mapping
Separated connections match each instrument with its corresponding control area.
Return-Electrode Monitoring
Monitors return-electrode contact status during monopolar operation and provides system response when applicable contact conditions are not met.
Configuration & Specifications
System configuration and confirmed specifications.
Review the supplied system, connection configuration and core technical differences in one place.

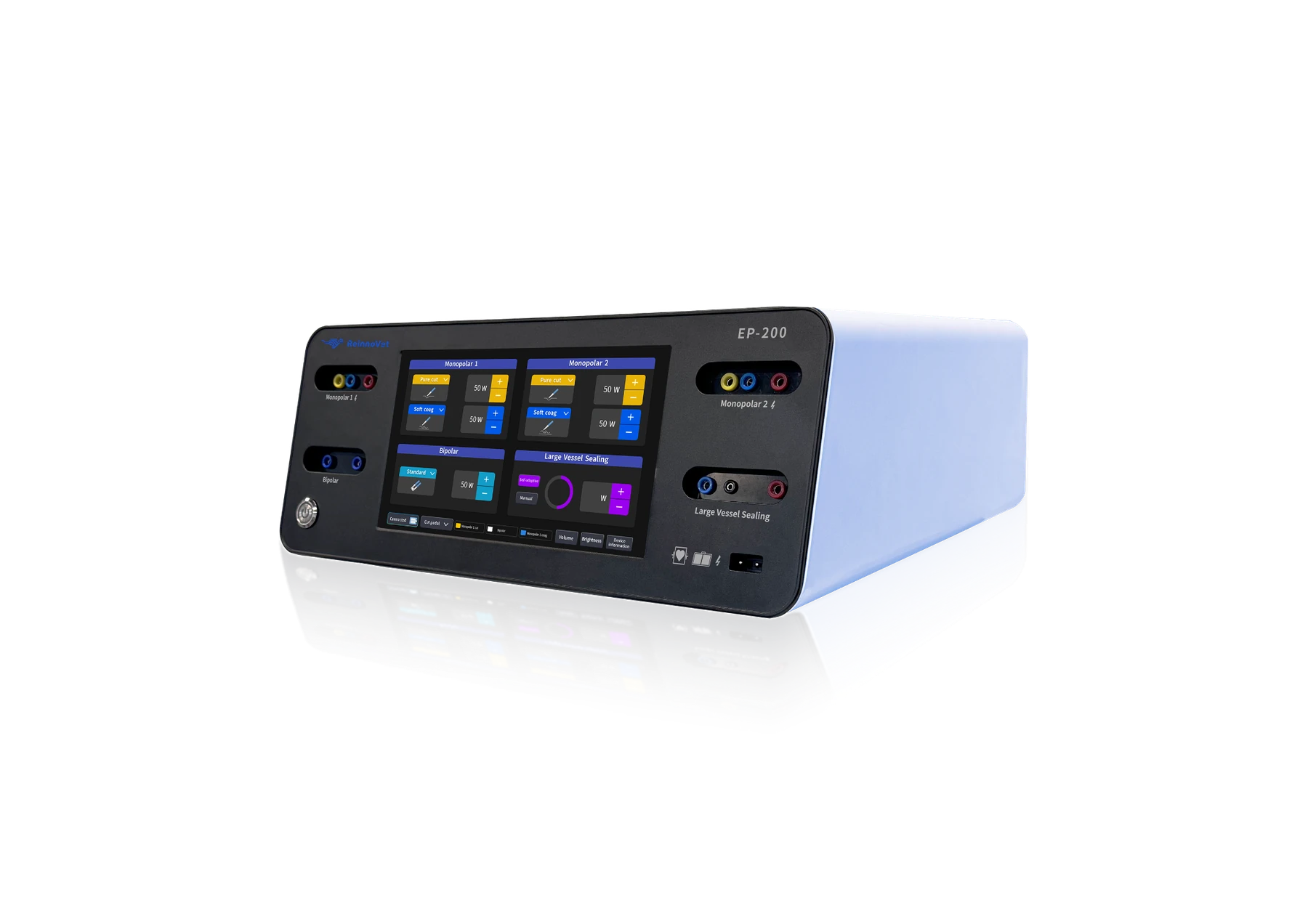

EP-200 expanded workflow configuration
Built for greater connection flexibility.
The EP-200 system supports monopolar, bipolar and vessel-sealing workflows with a larger main-unit configuration.
2 monopolar ports
Two monopolar instruments can remain connected for multi-instrument workflows.
Main unit
5 kg · 442 × 418 × 170 mm
Expanded console configuration for multi-instrument workflows.
Silver-nickel alloy forceps · Up to 200 W
Monopolar cutting and coagulation, bipolar coagulation and vessel sealing up to 7 mm.
Power input AC 220 V, 50 Hz

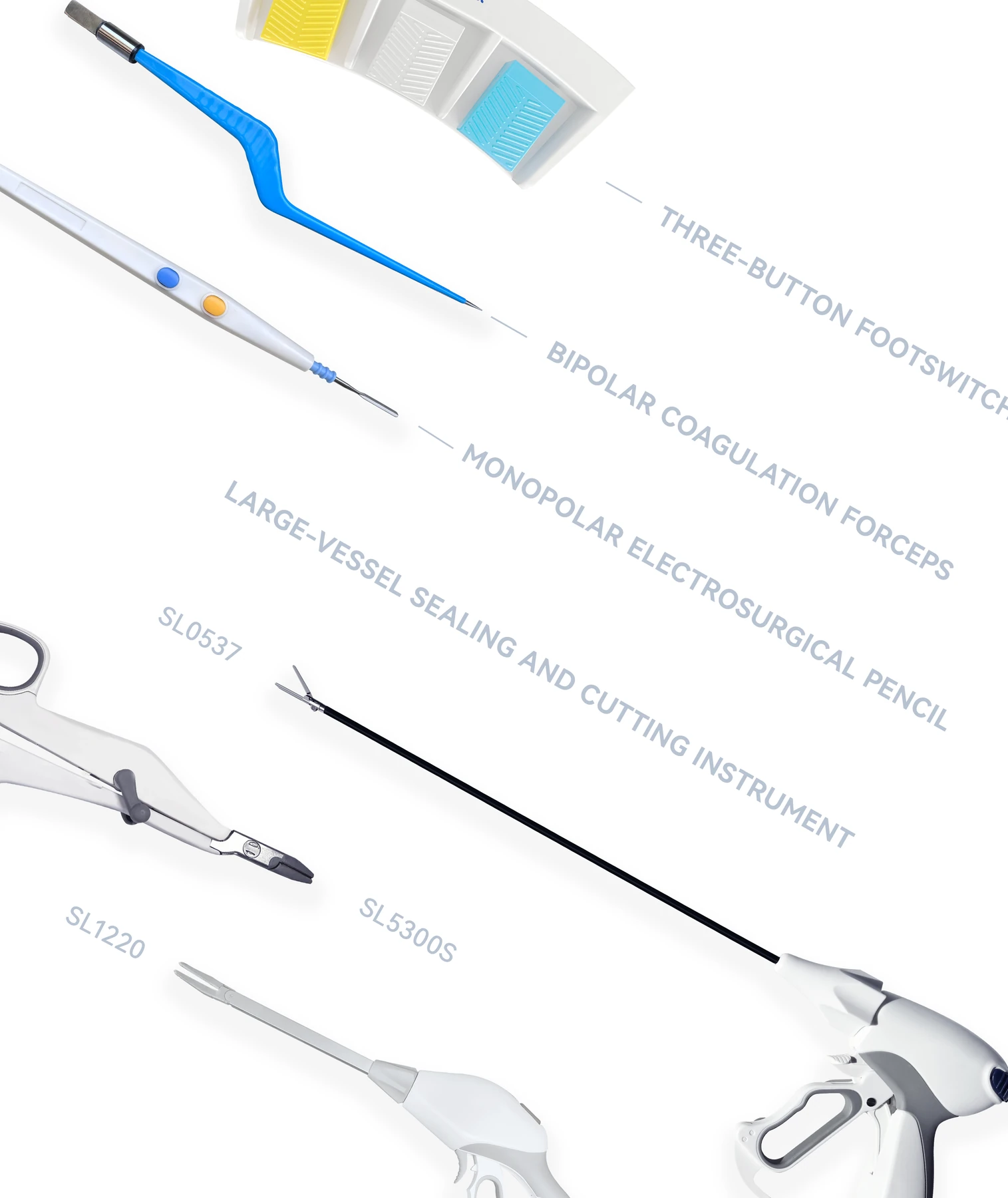

System and compatible accessories
- EP-200 Main Unit
- Electrosurgical Pencil
- Bipolar Forceps
- Large-Vessel Sealing Instrument
- Three-Button Footswitch
- Return Electrode Connector / applicable return-electrode system
Actual configurations may vary by market and order requirements.
Model Selection
Choose the EP Series platform that matches your workflow.
Both models retain monopolar, bipolar and vessel-sealing functions. Compare connection capacity, main-unit configuration and compatible accessories.
EP-300
Streamlined configuration
- Monopolar connection
- 1 port · one connected monopolar instrument
- Bipolar forceps
- Stainless-steel bipolar forceps
- Configuration highlights
- 3 kg · 370 × 400 × 180 mm
EP-200
Expanded connectivity
- Monopolar connection
- 2 ports · multi-instrument connectivity
- Bipolar forceps
- Silver-nickel alloy bipolar forceps
- Configuration highlights
- 5 kg · 442 × 418 × 170 mm
Model Comparison
Compare EP-200 and EP-300 side by side.
Review monopolar connectivity, supplied accessories, main-unit size and configuration before choosing an electrosurgical platform.
