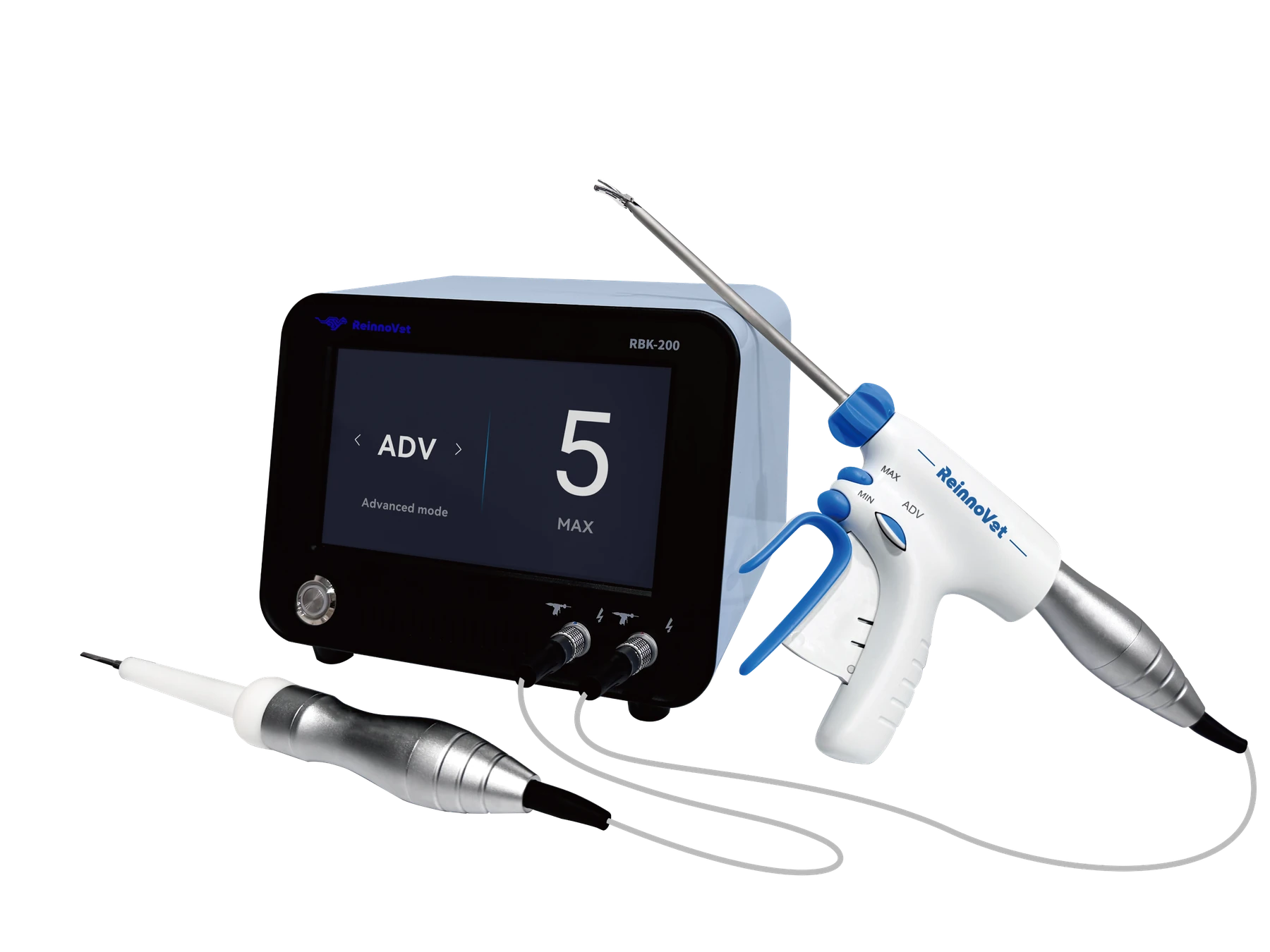

Product Overview
Two instrument families. One ultrasonic platform.
RBK-200 combines a dual-interface main unit with an ADV forceps instrument and dedicated Knife, Ball and Loop ultrasonic instruments for different tissue-contact functions.
Key Features
Platform capabilities for flexible workflows.
An ADV forceps instrument, dedicated Knife, Ball and Loop instruments and a dual-interface console form one ultrasonic platform.
Two Instrument Families
An ADV forceps instrument and dedicated Knife, Ball and Loop instruments share one ultrasonic platform.
Dual-Interface Configuration
The main unit provides dedicated interfaces for the two compatible instrument families.
55.5 kHz Ultrasonic Output
The RBK-200 system uses 55.5 kHz ultrasonic energy with 45 W peak power.
MAX / MIN / ADV Controls
Hand controls support cutting and vessel-sealing workflows with the applicable ADV forceps instrument.
Dedicated Ultrasonic Instruments
Dedicated Knife, Ball and Loop ultrasonic instruments.
Three dedicated ultrasonic instruments provide different tissue-contact functions for cutting, coagulation / hemostasis and loop-based resection.
Knife Ultrasonic Tip — Cutting
For soft-tissue cutting, trimming and dissection applications with coagulation.
Ball Ultrasonic Tip — Coagulation/Hemostasis
For broad-area and spot coagulation/hemostatic applications.
Loop Ultrasonic Tip — Resection/Lesion Removal
For loop-based soft-tissue resection and removal of superficial lesions, with coagulation.
Actual compatible instruments and supplied configurations should be confirmed before quotation.
ADV Pistol-Grip Instrument
Direct control for efficient surgical workflows.
The pistol-grip instrument combines direct activation, 360° shaft rotation and multiple shaft lengths in one handheld design.
- MAX / MIN / ADV controls
- 360° rotation wheel
- Selectable shaft lengths
- Multifunctional jaw
MAX / MIN / ADV Direct Control
Handpiece buttons provide direct activation for cutting and vessel sealing.
360° Shaft Rotation
The rotation wheel supports rapid adjustment of jaw orientation during surgery.
14 / 23 / 36 cm Shaft Options
Multiple shaft lengths support different surgical approaches and working depths.
Multifunctional Jaw
The jaw supports clamping, cutting, coagulation and controlled tissue handling.
Configuration & Specifications
Dual-interface configuration and core specifications.
Detailed technical information should be reviewed in the applicable product documentation.
Dual-interface console · ADV forceps · Knife · Ball · Loop. Included items and final configuration should be confirmed before quotation.
Availability, compatible instruments and accessory packages may vary by market.
- Output Frequency
- 55.5 kHz
- Peak Power
- 45 W
- Main Unit Weight
- 2.85 kg
- Power Input
- AC 220 V, 50 Hz
- Electrical Protection
- Class I / Type CF
- Cutting Levels
- Levels 1–5

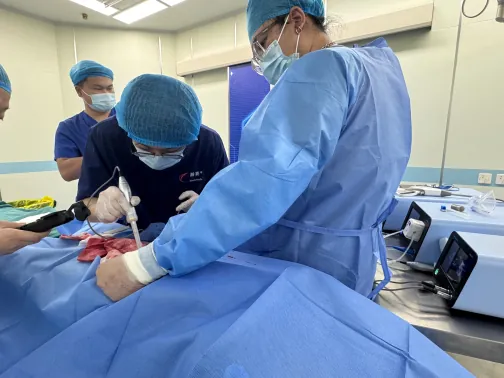

Workflow Fit
Flexible tissue-contact approaches in one platform.
Knife — Cutting
For soft-tissue cutting, trimming and dissection applications with coagulation.
Ball — Coagulation/Hemostasis
For broad-area and spot coagulation/hemostatic applications.
Loop — Resection/Lesion Removal
For loop-based soft-tissue resection and removal of superficial lesions, with coagulation.
ADV forceps workflows
Direct handheld controls and 360° shaft rotation support positioning with the ADV ultrasonic instrument.
Model Comparison
Compare UG-100 and RBK-200 side by side.
Shared facts: 55.5 kHz output frequency · 45 W peak power · up to 5 mm vessel-sealing capacity · Levels 1–5 · 2.85 kg · AC 220 V, 50 Hz · Class I / Type CF.
