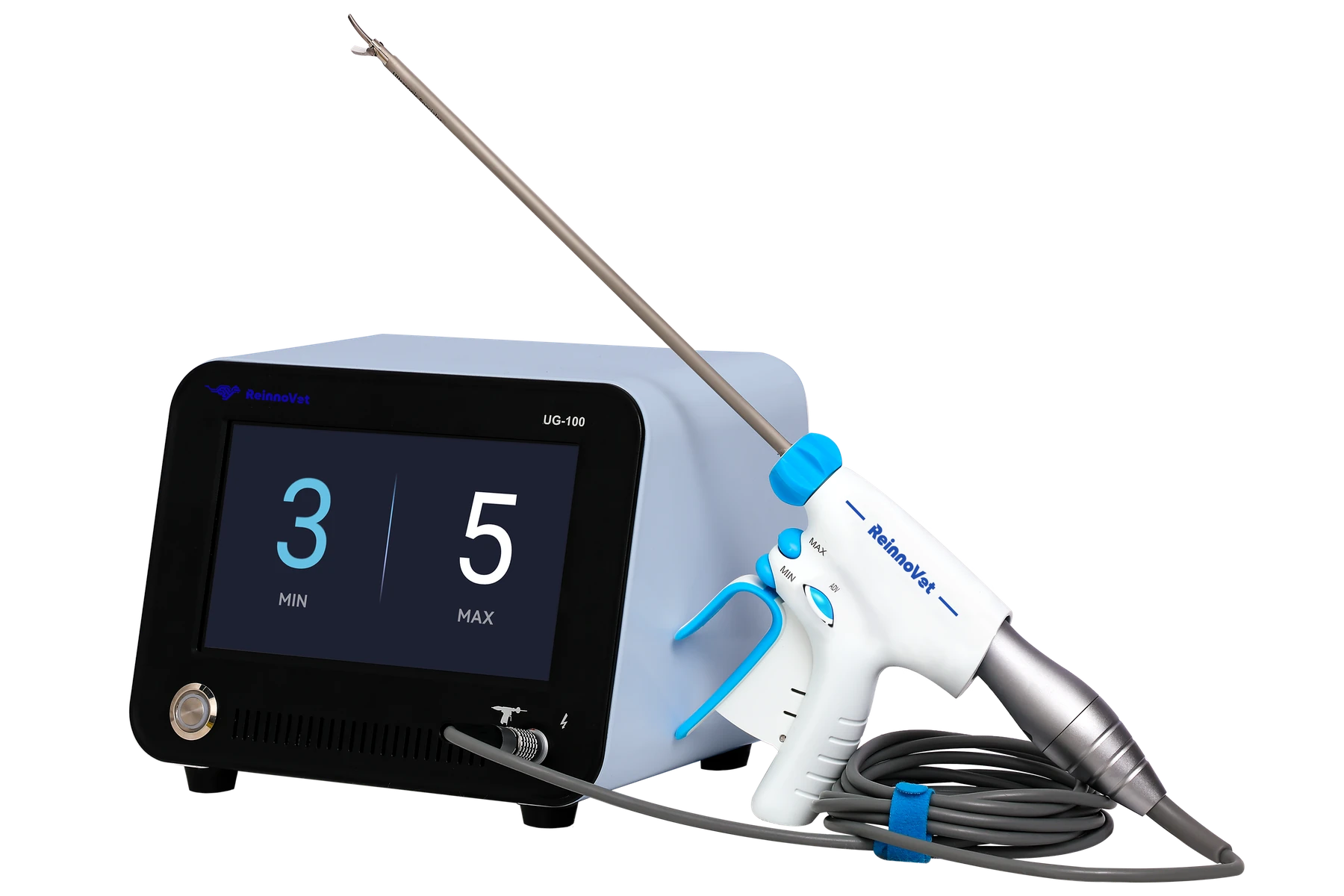

Key Features
Core performance for veterinary ultrasonic surgery.
The UG-100 combines an ADV side-button forceps instrument, selectable shaft lengths and an HP-100 transducer for veterinary soft-tissue workflows.
ADV Side-Button Ultrasonic Forceps Blade
A forceps-format ultrasonic instrument with MAX, MIN and ADV hand controls.
Three Blade Lengths
Available in 14 cm, 23 cm and 36 cm lengths.
360° Rotation Dial
The instrument includes a 360° shaft-rotation dial.
HP-100 Transducer
The HP-100 transducer connects to the ultrasonic instrument and forms part of the system's mechanical drive assembly.
Ultrasonic Instrument Anatomy
Explore the UG-100 ultrasonic instrument.
Select a view to examine the complete handpiece, HP-100 transducer or functional jaw surfaces.
Control and positioning in one hand.
A multi-functional jaw, selectable shaft lengths and a 360° rotation wheel support precise positioning.
- Shaft options
- 14 / 23 / 36 cm
- Rotation
- 360°
- Transducer
- HP-100
- Multi-functional jaw
- Shaft (14 / 23 / 36 cm)
- 360° shaft rotation wheel
- HP-100 transducer
- Control buttons
- ADV side button
- Trigger

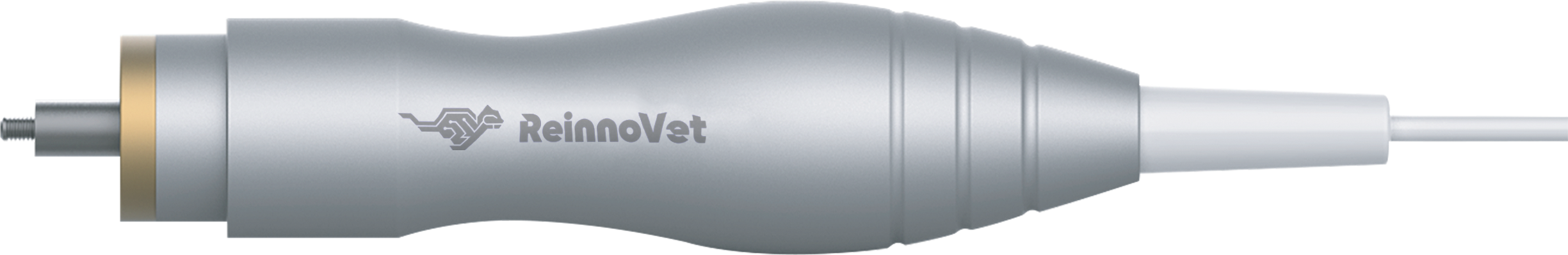

Mechanical drive connection.
The HP-100 transducer connects to the ultrasonic instrument and forms part of the system's mechanical drive assembly.
- Component
- HP-100
- Position
- Proximal assembly
- Connection
- Instrument interface
- 01HP-100 transducer
- 02Instrument connection

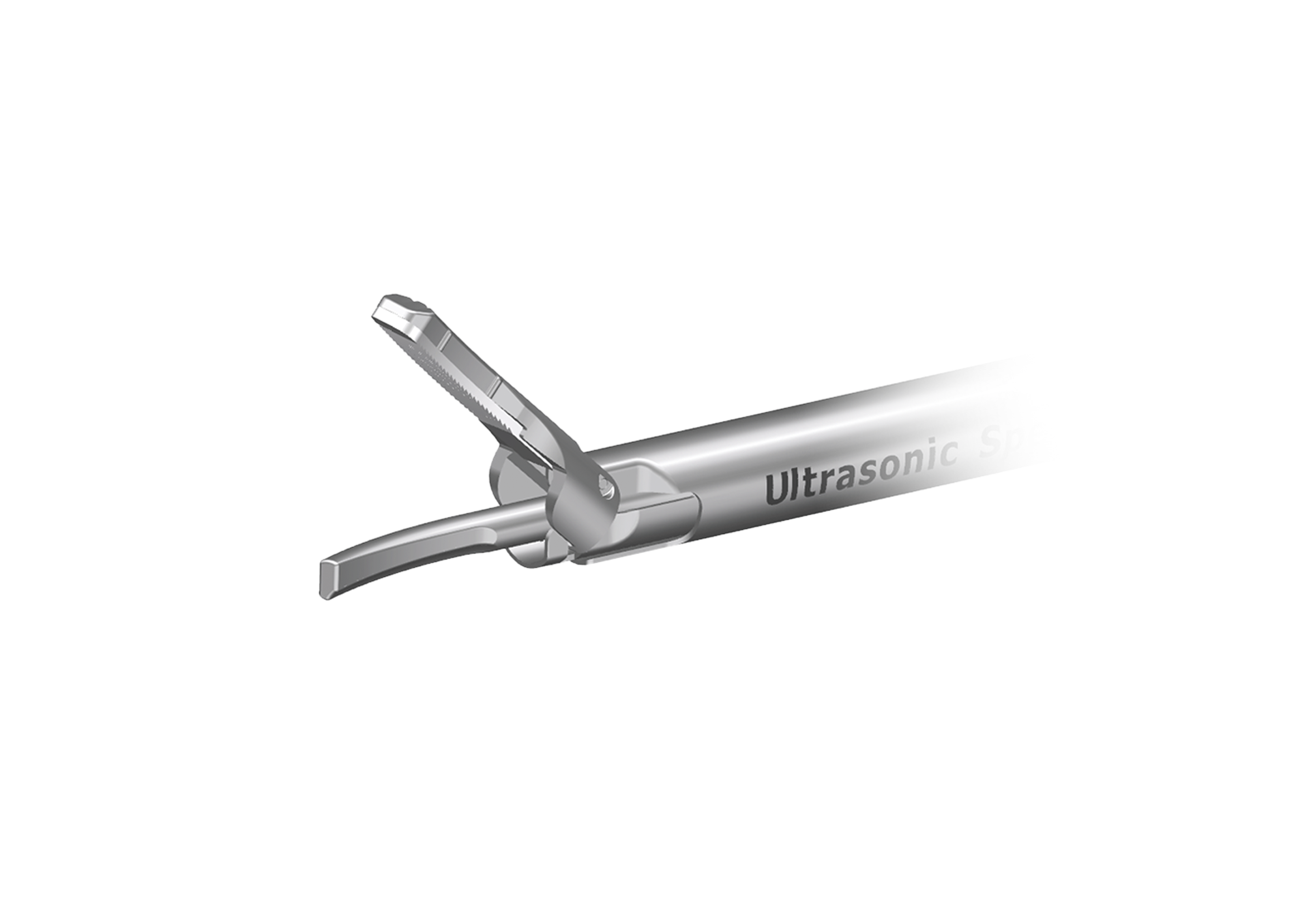

Focus on the tissue-contact area.
An enlarged view of the distal jaw supports visual examination of its opposing tissue-contact surfaces.
- Region
- Distal jaw
- Surfaces
- Opposing faces
- Context
- Tissue contact
- 01Distal jaw
- 02Opposing jaw surfaces
- 03Tissue-contact area

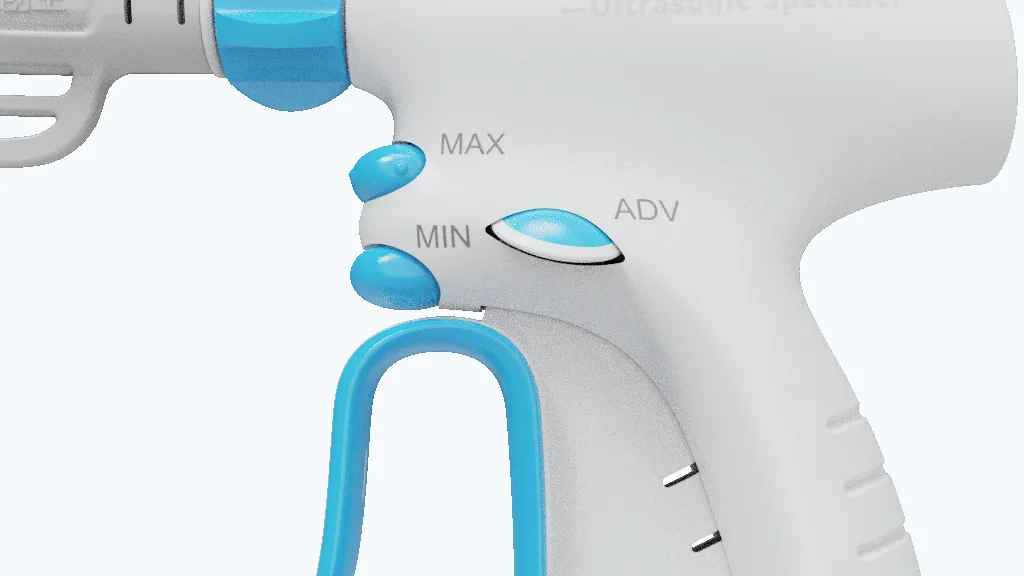

ADV Side-Button Control
Direct control of cutting speed and vessel sealing.
MAX, MIN and ADV are positioned on the handpiece for direct activation during surgery.
Faster cutting and sealing
Supports faster cutting and vessel sealing for applicable vessels up to 3 mm.
Vessel sealing
Supports vessel sealing for applicable vessels up to 5 mm.
Enhanced sealing mode
Enhanced sealing mode for applicable vessels up to 5 mm.
Recommended Power-Level Guidance
Recommended for sealing vessels from 3–5 mm, including 5 mm.
Recommended for vessels and tissue up to 3 mm and for tissue cutting.
Compared with MIN, ADV offers a slightly lower cutting speed with a higher burst-pressure margin for enhanced vessel-sealing reliability.
Demonstration
UG-100 instrument handling and soft-tissue demonstrations.
Specific applications and operating guidance should follow the applicable product documentation.

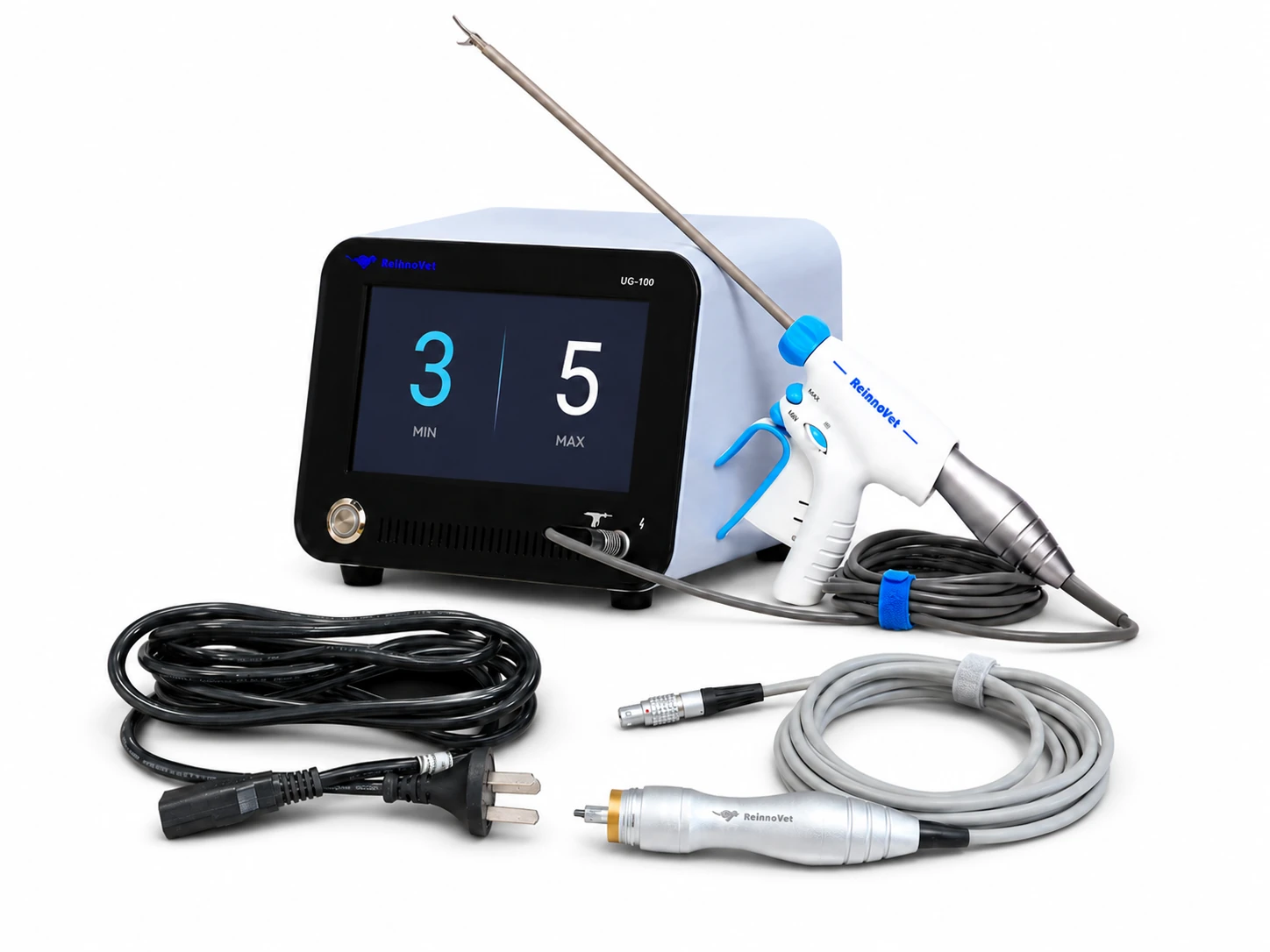

Configuration & Specifications
System configuration and core specifications.
Detailed technical information should be reviewed in the applicable product documentation.
UG-100 main unit · ADV ultrasonic forceps · HP-100 transducer. Included items and final configuration should be confirmed before quotation.
Availability, compatible instruments and accessory packages may vary by market.
- Output Frequency
- 55.5 kHz
- Peak Power
- 45 W
- Main Unit Weight
- 2.85 kg
- Power Input
- AC 220 V, 50 Hz
- Electrical Protection
- Class I / Type CF
- Cutting Levels
- Levels 1–5
Related Applications
Supported veterinary workflow areas.
Final indications and compatible instruments follow applicable product documentation.
Model Comparison
Compare UG-100 and RBK-200 side by side.
Shared facts: 55.5 kHz output frequency · 45 W peak power · up to 5 mm vessel-sealing capacity · Levels 1–5 · 2.85 kg · AC 220 V, 50 Hz · Class I / Type CF.
