Key Facts
EP-300 at a glance.
- Cut / coag output
- 200 W
- Up to 200 W peak output
- Monopolar port
- 1
- Streamlined single-port connection
- Energy workflows
- 3
- Monopolar · Bipolar · Vessel sealing
- Vessel sealing
- ≤ 7 mm
- Supports applicable vessel-sealing workflows

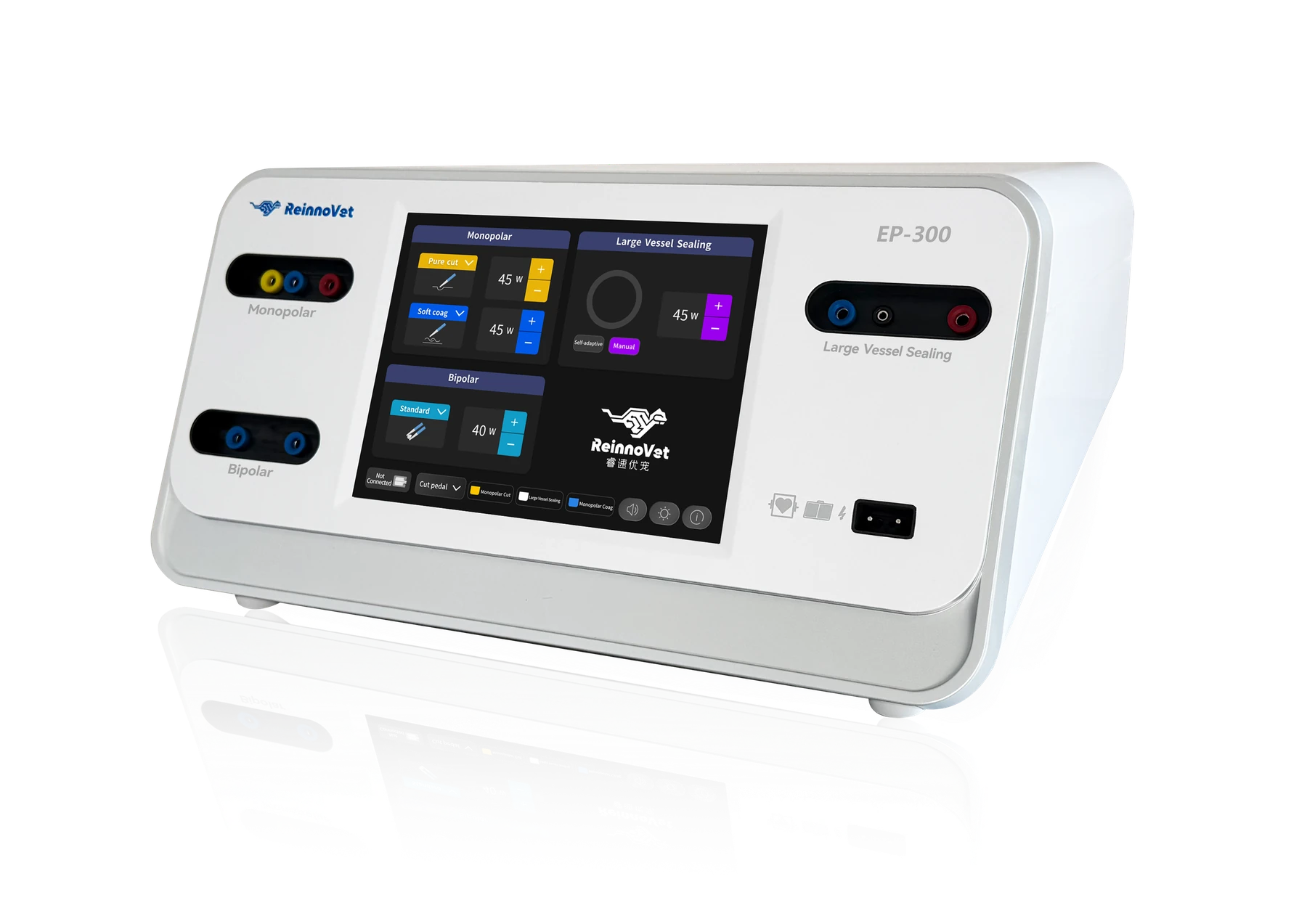

Streamlined system configuration
Monopolar, bipolar and vessel-sealing functions in a streamlined system configuration.
EP-300 retains the essential EP Series energy and workflow capabilities with a single-monopolar-port configuration.
System configuration
Complete functions. Streamlined setup.
A compact platform combining three electrosurgical energy functions.
- Core energy modes
- Monopolar · Bipolar
- Vessel sealing
- Up to 7 mm
- Front-panel design
- Single monopolar port
Core energy functions
Three energy workflows in one generator
Monopolar, bipolar and vessel-sealing functions with compatible instruments.
Streamlined connectivity
A single-monopolar-port layout
Front-panel connections support one connected monopolar instrument.
Compact main unit
A lighter system configuration
A 3 kg main unit with stainless-steel bipolar forceps in the approved configuration.
Energy Workflows
One generator. Three electrosurgical workflows.
A coordinated energy platform for veterinary electrosurgical workflows with compatible instruments.
Monopolar Cutting & Coagulation
Supports compatible monopolar pencils and electrodes through one monopolar port.
Bipolar Coagulation
Supports bipolar coagulation with compatible bipolar forceps and connecting accessories.
Vessel Sealing
Supports compatible vessel-sealing instruments for applicable vessels and tissue bundles up to 7 mm.
Core Technology
Tissue-adaptive energy management.
The EP Series algorithm monitors tissue impedance and adjusts energy delivery in applicable intelligent modes.
Real-time energy feedback
Two feedback speeds in one control loop
Tissue-status detection
450,000×/s detection
Tissue-status sensing identifies impedance changes during applicable energy delivery.
Energy output adjustment
100×/s adjustment
Energy output is adjusted using tissue-impedance feedback in applicable modes.
Impedance Feedback
Detection and adjustment in applicable modes.
- Tissue-status detection
- 450,000×/s
- Energy adjustment
- 100×/s
Detect tissue status
Applicable intelligent modes use tissue-status detection during energy delivery.
Read impedance feedback
Tissue impedance provides feedback during applicable operating modes.
Adjust energy delivery
The system adjusts energy delivery according to the applicable mode.
Continue operator control
Settings and operation follow the applicable product instructions.

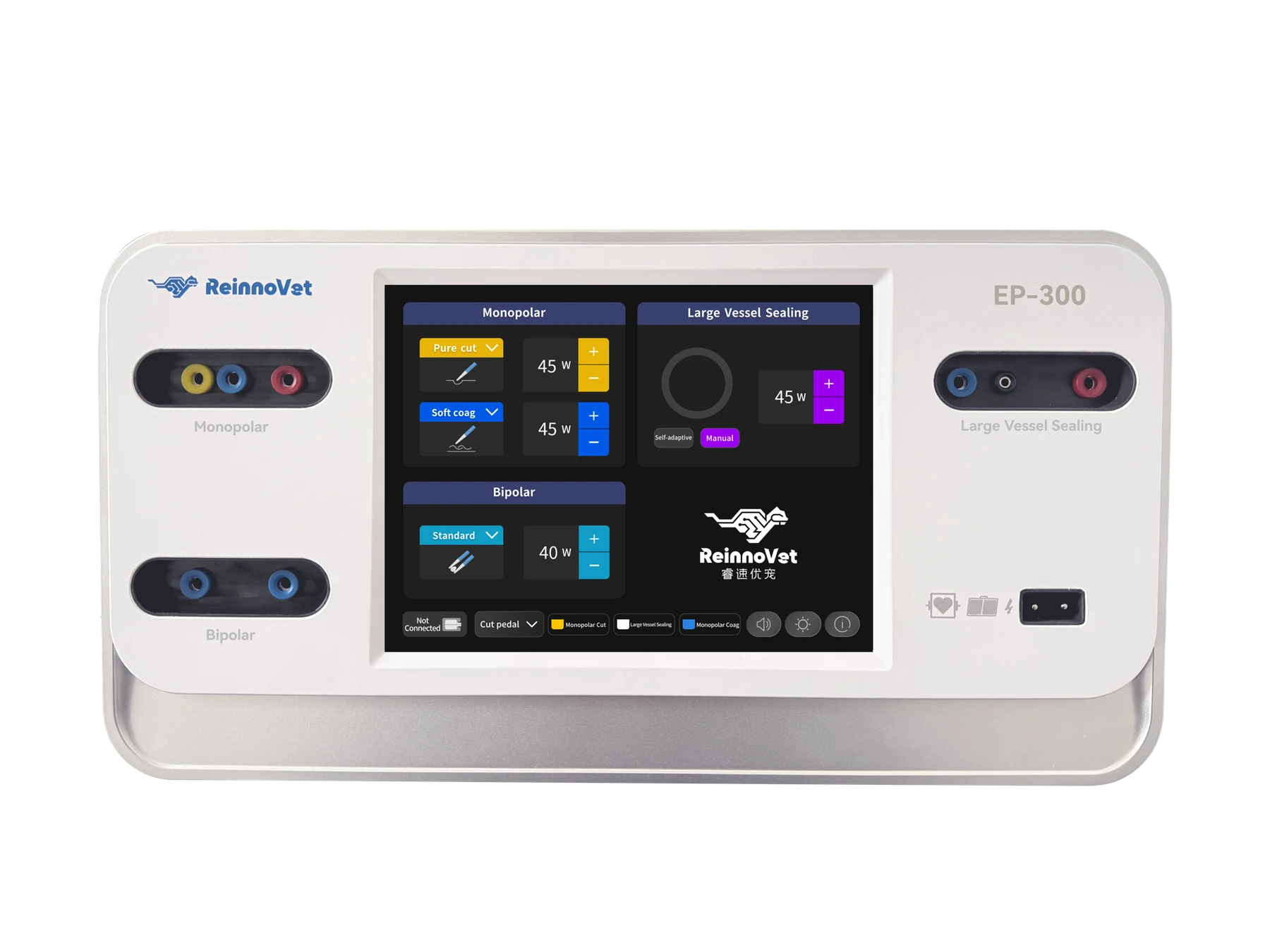

Operating Interface
Complete energy control in a streamlined interface.
The EP-300 organizes monopolar, bipolar and vessel-sealing controls around one monopolar port, screen mapping and return-electrode monitoring.
Intuitive operating logic
Clear operation. Streamlined connectivity.
Complete Energy Modes
Monopolar, bipolar and vessel-sealing controls remain visible in one interface.
Streamlined Front-Panel Mapping
One monopolar port provides direct mode-to-port recognition in a streamlined layout.
Return-Electrode Monitoring
Monitors return-electrode contact status during monopolar operation and provides system response when applicable contact conditions are not met.
Configuration & Specifications
System configuration and confirmed specifications.
Review the supplied system, connection configuration and core technical differences in one place.

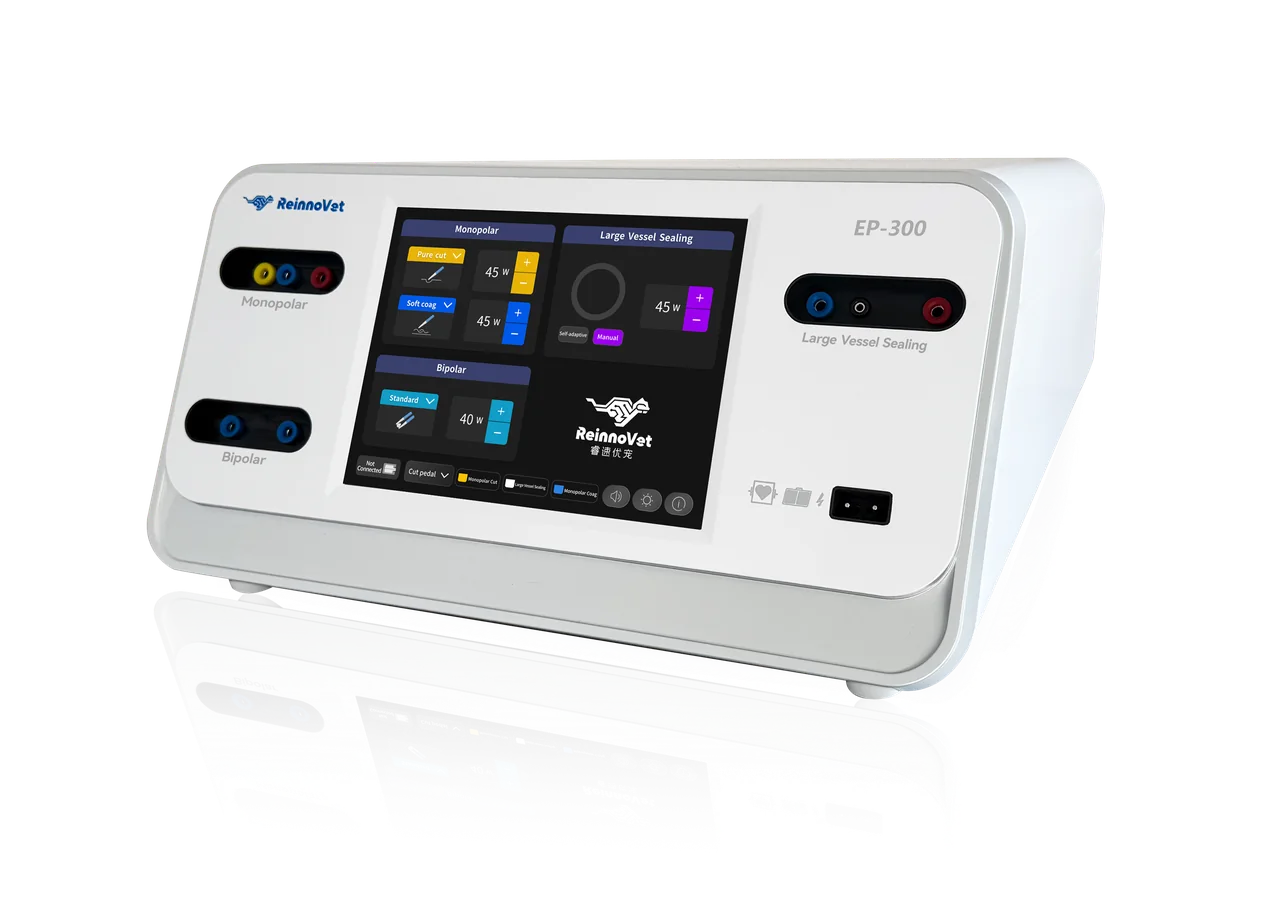

EP-300 Configuration
- EP-300 main unit
- 1 × Monopolar port
- Stainless-steel bipolar forceps
EP-300 streamlined workflow configuration
Built for a streamlined setup.
The EP-300 system retains the same core energy workflows in a lighter, compact main-unit configuration.
1 monopolar port
A single-port connection supports monopolar cutting and coagulation workflows.
Main unit
3 kg · 370 × 400 × 180 mm
A lighter and more compact console with streamlined connectivity and system configuration.
Stainless steel forceps · Up to 200 W
Monopolar cutting and coagulation, bipolar coagulation and vessel sealing up to 7 mm.
Power input AC 220 V, 50 Hz
System and compatible accessories
- EP-300 Main Unit
- Electrosurgical Pencil
- Bipolar Forceps
- Large-Vessel Sealing Instrument
- Three-Button Footswitch
- Return Electrode Connector / applicable return-electrode system
Actual configurations may vary by market and order requirements.
Model Selection
Choose the EP Series platform that matches your workflow.
Both models retain monopolar, bipolar and vessel-sealing functions. Compare connection capacity, main-unit configuration and compatible accessories.
EP-300
Streamlined configuration
- Monopolar connection
- 1 port · one connected monopolar instrument
- Bipolar forceps
- Stainless-steel bipolar forceps
- Configuration highlights
- 3 kg · 370 × 400 × 180 mm
EP-200
Expanded connectivity
- Monopolar connection
- 2 ports · multi-instrument connectivity
- Bipolar forceps
- Silver-nickel alloy bipolar forceps
- Configuration highlights
- 5 kg · 442 × 418 × 170 mm
Model Comparison
Compare EP-200 and EP-300 side by side.
Review monopolar connectivity, supplied accessories, main-unit size and configuration before choosing an electrosurgical platform.
